Jason Taylor Real World Azure Tales

The folks over on the TFS / Visual Studio team have been working hard at releasing a steady stream of new features for their new hosted Team Foundation Service in the cloud. One of the most significant features released was simple continuous delivery of your solution into your Azure deployments. The original announcement from Brian Harry can be found here.

Team Foundation Service is a great platform for .Net developers who are used to working with TFS on-premises. I’ve been using it since it became available at the //BUILD conference in 2011, and when I recently came to work at Stackify, it was one of the first changes I made. Managing work items is much easier than the tool we were using previously, although there are some limitations (more on that in another blog post). However, when continuous deployment was made available, it blew my mind. It was the killer feature I didn’t know I needed. Not to say that I wasn’t previously an advocate for continuous delivery; just that it was always a pain to set up and configure. Having it hosted - and a one-click setup – well, that’s just the best thing since sliced bread.

It made perfect sense: my source code is in the cloud, and my deployment is in the cloud. Great! I can queue up a build from my iPad or phone and just let it go! I quickly tore through the quick setup and saw it all work… sort of.

This will be the first in a three part series on how to take the building block of Team Foundation Service continuous delivery and build a CD model that will actually work for any team deploying something more advanced than a “Hello World” example.

Part 1: Good Enough Is Not Great

Part 2: A Model That Works: Branching and Multiple Deployment Environments

Part 3: Other Considerations: SQL, Custom Tasks, Etc

Good Enough Is Not Great

There. I’ve said it. I certainly hope no one on the TFS team is offended, but it’s the truth. Let’s take a look under the hood and understand how it works, and then why it’s not enough to handle real world CD as-is.

How it works. (note that I’ve skipped a couple of steps; I already have my accounts set up and something deployed to Azure)

The first step is to establish some oAuth magic between your Azure management portal and your TFS Instance. You do this via the management portal. Once it’s done, you have a new build process template in your TFS instance.

(Image lifted from the documentation)

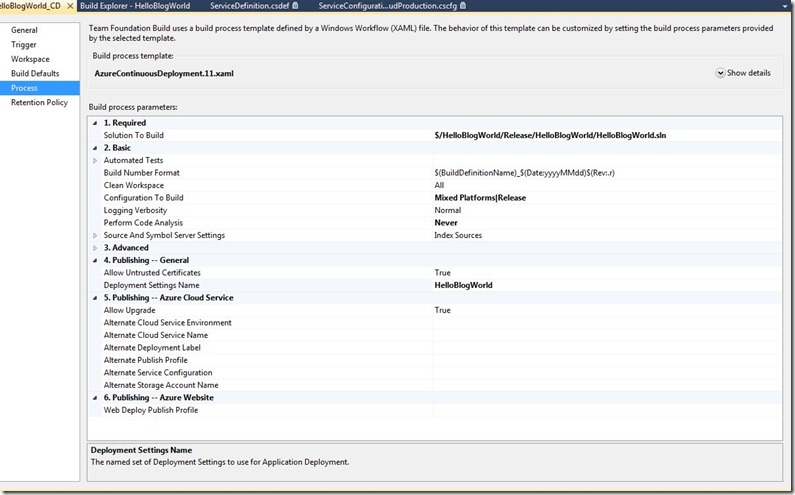

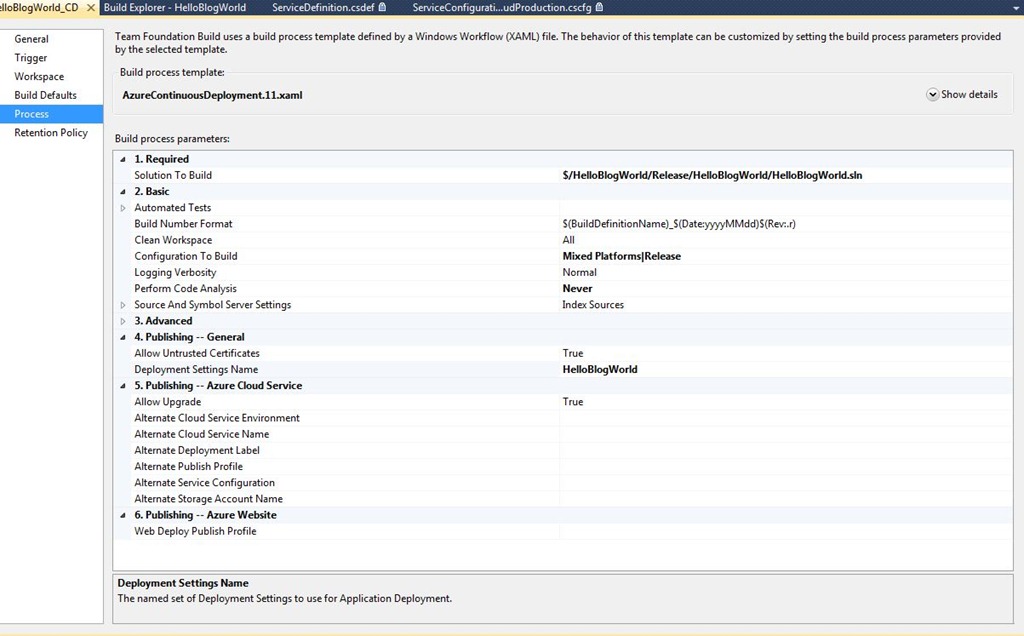

From here, you’ll get the usual prompts for security, allowing access, etc. But you’ll also get to pick which Solution in your source control to build. Here’s what the bulk of the build definition looks like.

BuildDefinition

All I’ve had to do is add in the solution to build (notice that mine is from a specific branch – Release – more on that later) and I’ve changed the configuration. I trigger the build, and voila! I have an Azure deployment a few minutes later. The beauty of this is that it’s all in the cloud and I’m not waiting for my machine to compile and upload the package. (I also had to enable the build definition first – by default it is created in disabled state, probably a good thing since it will trigger on every.single.checkin by default.) I get to see a history of deployments from the Azure portal, and can link into TFS to see the associated changesets and work items.

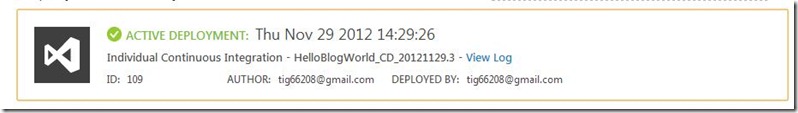

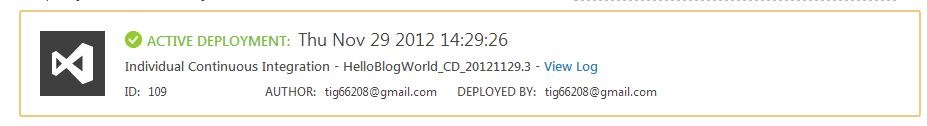

Deployment

You’ll notice also that this build definition also automatically put my code in the Staging slot of my Azure deployment – more on this soon. For now, I can VIP swap and be in production. (P.S. I hate VIP swap and “production” and “staging” in Azure. More on that later too.)

That’s it. That’s the default out-of-box experience. Easy, right? But it’s full of room for improvement, so let’s get into that….



The Problems

Nothing is perfect (except my code – it’s always perfect), and neither is Continuous Deployment without a bit of work to help it fit your dev team’s process. So what are the issues?

Issue 1: Staging vs QA vs Prod vs whatever other environments your team may have.

This, for me, is the big hairy one. Remember how this automatically deployed to staging rather than prod for us? There are a couple of issues with this model:

  • If I want to deliver to prod, it requires intervention on my part after deployment (via a VIP swap).
  • If I truly want to promote between environments (i.e. Nightly Build –> Stable QA –> Production) I likely have configuration changes between each environment such as database connection strings and this process (and the VIP swap) doesn’t account for this. Yet.

Issue 2: Branching and delivering on every check-in.

As I mentioned above, I have set this up to target a specific branch – Release – of my code. For the purposes of this example, I have adopted the “basic” branching strategy as defined by the ALM Rangers. This basically establishes a “Main” trunk where you branch off Dev and Release branches. Granted, the Release branch is usually the only thing you will deploy to production, but you certainly don’t want to roll to production automatically when you merge to the Release branch and check-in (unless you like the thrill of it, and in that case, I like your style, cowboy….). Rather, you have nightly build and QA environments, or if you’ve adopted the feature-branch model you have environments for those. Those are the environments you want to continuously deploy to. But that takes us back to Issue 1: we currently have a 1:1 solution to Azure deployment target.

Issue 3: SQL and other custom tasks.

Let’s be honest and address the elephant in the room: I need to get some sleep because I see an elephant in the room. But seriously, I can’t think of an application I have touched in the last 10 years that doesn’t need to consider SQL changes when deploying code and upgrading an environment. Microsoft seems perfectly content to ignore this elephant for now: yes, they’ve added Data Tier Applications. But let’s be honest with ourselves again: no one really uses it, and it’s not suitable for anything more complex than a Hello World sample project database. Why? Because it doesn’t fit well into a great source control story. Developers make stored procedure and table changes all day long while coding complex applications, and if someone forgets to go update the DACPAC before the automated deployment, you have a broken build until it’s completed. Developers – not just DBAs – also like to work with SQL in SQL tools, not in Visual Studio.

I’m really picking on SQL because that’s generally the biggest concern that I hear. But we need to account for any custom tasks as well in the build process.



The Solutions… ?

We’ve taken a look at how this all works, and addressed the shortcomings. In my next post (which I promise will be very, very soon), I will detail how I’ve overcome these shortcomings and used this foundation to create a mature, flexible model for deploying my app – any version, any time, to any environment.

Posted on Thursday, November 29, 2012 3:07 PM azure , DevOps , TFS , Visual Studio | Back to top
