Uploading and Storing Images to Database in ASP.NET

This example demonstrates how to upload image using the FileUpload control and store the uploaded file in the database in binary format.



STEP1: Creating the Database.



The following are the basic steps on how to create a simple database in the Sql Server:



  1. Launch Sql Server Management Studion Express and then connect
  2. Expand the Databases folder from the Sql Server object explorer
  3. Right click on the Databases folder and select “New Database”
  4. From the pop up window, input the database name you like and click add
  5. Expand the Database folder that you have just added
  6. Right click on the Tables folder and select “New Table”

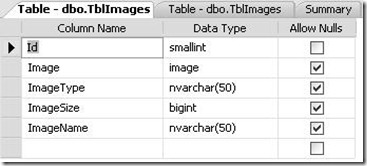

  7. Then add the following fields below:





Note: in this demo, I set the Id to auto increment so that the id will be automatically generated for every new added row. To do this select the Column name “Id” and in the column properties set the “Identity Specification” to yes.



Then after adding all the necessary fields, name your Table the way you like. Note that in this demo I name it “TblImages”



STEP2: Setting up the WebForm (UI)



For the simplicity of this demo, I set up the UI like this below:





STEP3: Setting up the Connection String



In your webconfig file set up the connection string there as shown below:



  <connectionStrings>

    <add name="MyConsString" connectionString="Data Source=WPHVD185022-9O0;Initial Catalog=MyDatabase;Integrated Security=SSPI;"

   providerName="System.Data.SqlClient" />

  </connectionStrings>



Note: MyConsString is the name of the Connection String that we can use as a reference in our codes for setting the connection string later.



STEP4: Writing the codes for Saving the binary image to Database.



Here are the code blocks below:



    private void StartUpLoad()

    {

        //get the image file that was posted (binary format)

        byte[] theImage = new byte[FileUpload1.PostedFile.ContentLength];

        HttpPostedFile Image = FileUpload1.PostedFile;

        Image.InputStream.Read(theImage, 0, (int)FileUpload1.PostedFile.ContentLength);

        int length = theImage.Length; //get the length of the image

        string fileName = FileUpload1.FileName.ToString(); //get the file name of the posted image

        string type = FileUpload1.PostedFile.ContentType; //get the type of the posted image

        int size = FileUpload1.PostedFile.ContentLength; //get the size in bytes that

        if (FileUpload1.PostedFile != null && FileUpload1.PostedFile.FileName != "")

        {

            //Call the method to execute Insertion of data to the Database

            ExecuteInsert(theImage, type, size, fileName, length);

            Response.Write("Save Successfully!");

        }

    }

    public string GetConnectionString()

    {

        //sets the connection string from your web config file "ConnString" is the name of your Connection String

        return System.Configuration.ConfigurationManager.ConnectionStrings["MyConsString"].ConnectionString;

    }



    private void ExecuteInsert(byte[] Image, string Type, Int64 Size, string Name, int length)

    {

        SqlConnection conn = new SqlConnection(GetConnectionString());



        string sql = "INSERT INTO TblImages (Image, ImageType, ImageSize, ImageName) VALUES "

                    + " (@img,@type,@imgsize,@imgname)";

        try

        {

            conn.Open();

            SqlCommand cmd = new SqlCommand(sql, conn);

            SqlParameter[] param = new SqlParameter[4];



            //param[0] = new SqlParameter("@id", SqlDbType.Int, 20);

            param[0] = new SqlParameter("@img", SqlDbType.Image, length);

            param[1] = new SqlParameter("@type", SqlDbType.NVarChar, 50);

            param[2] = new SqlParameter("@imgsize", SqlDbType.BigInt, 9999);

            param[3] = new SqlParameter("@imgname", SqlDbType.NVarChar, 50);



            param[0].Value = Image;

            param[1].Value = Type;

            param[2].Value = Size;

            param[3].Value = Name;



            for (int i = 0; i < param.Length; i++)

            {

                cmd.Parameters.Add(param[i]);

            }



            cmd.CommandType = CommandType.Text;

            cmd.ExecuteNonQuery();

        }

        catch (System.Data.SqlClient.SqlException ex)

        {

            string msg = "Insert Error:";

            msg += ex.Message;

            throw new Exception(msg);



        }

        finally

        {

            conn.Close();

        }

    }

    protected void Page_Load(object sender, EventArgs e)

    {



    }

    protected void Button1_Click(object sender, EventArgs e)

    {

        StartUpLoad();

    }



StartUpload() is method that gets all the necessary information from the uploaded file such as the image length, size, type, filename and the image itself in a binary format.



GetConnectionString() is a method that returns the connection string that was set up from the web.config file.



ExecuteInsert() is a method that will executes the insertion of data to the database. This method takes all the necessary data to be inserted in the database.



As you can see the code above is pretty straight forward and self explanatory…

Check out my next example about "Displaying Image to Image Control based on User Selection in ASP.NET"

That’s it! Hope you will find this example useful!

Print | posted on Thursday, April 23, 2009 11:13 AM |

Feedback

Gravatar

# re: Uploading and Storing Images to Database in ASP.NET

jgkljkljgldfkg

6/29/2009 3:39 AM | qw
Gravatar

# re: Uploading and Storing Images to Database in ASP.NET

hai ,the code is good and very simple ,nice if u cud write one for downloading too..
thanks
6/30/2009 3:01 AM | darsana
Gravatar

# re: Uploading and Storing Images to Database in ASP.NET

this produced a lot of errors called this
using System.Data.SqlClient; but still this

------ Build started: Project: C:\WebSite4\, Configuration: Debug Any CPU ------
Validating Web Site
Building directory '/WebSite4/'.

C:\WebSite4\Default.aspx.cs(47,49): error CS0103: The name 'SqlDbType' does not exist in the current context
C:\WebSite4\Default.aspx.cs(48,50): error CS0103: The name 'SqlDbType' does not exist in the current context
C:\WebSite4\Default.aspx.cs(49,53): error CS0103: The name 'SqlDbType' does not exist in the current context
C:\WebSite4\Default.aspx.cs(50,53): error CS0103: The name 'SqlDbType' does not exist in the current context
C:\WebSite4\Default.aspx.cs(62,31): error CS0103: The name 'CommandType' does not exist in the current context
Validation Complete
========== Build: 0 succeeded or up-to-date, 1 failed, 0 skipped ==========
7/31/2009 11:44 AM | zpupster
Gravatar

# re: Uploading and Storing Images to Database in ASP.NET

it is working now, i did not have :
using System.Data
using System.Data.SqlClient
at the top couple of typos in the connection string

thanks for this
7/31/2009 4:23 PM | zpupster
Gravatar

# re: Uploading and Storing Images to Database in ASP.NET

Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx Thanx
9/12/2009 9:37 AM | sharad
Gravatar

# re: Uploading and Storing Images to Database in ASP.NET

how to store the image to database from imagecontol event in asp.net
10/15/2009 11:45 PM | dinakaran
Gravatar

# re: Uploading and Storing Images to Database in ASP.NET

@dinakaran,

There's no direct way to do that.. what you can do is probably convert the image to binary first and then save the stream data to DB. see this post:
http://forums.asp.net/t/1270837.aspx
10/18/2009 12:46 PM | Vinz
