UppercuT v1.2–NuGet Support

NuGetUppercuT_Logo_mediumFor those that have not yet heard, NuGet went v1 recently along with a whole slew of tools from the Microsoft folks. I’ve been lucky to be a part of the NuGet project and see it take shape over the past few months with community input and contributions. Even though v1.0 was released, we are already moving forward with getting ideas and prioritizing features for the next version.

To follow the announcement, UppercuT (UC) v1.2 now includes support for NuGet out of the box. Plus, it will handle versioning the nuspec file for you, a highly requested feature for those that worked with other package managers.

UppercuT + NuGet == Can Packaging Get Any Easier?

It can. UC exists to take the pains out of builds. To go from zero to your first NuGet package with the goodness of UC, just read on and follow the directions. If you are already creating nuget packages, UC can help update the version in the nuspec for you automatically. Read on…

Upgrading?

1. For those upgrading, you bring over the entire contents of the build directory like before. Please see the downloads (or the ReadMe ReleaseNotes section) for any items you need to change between your previous version and the latest version of UC you are downloading.

2. You will want to add the following to your UppercuT.config file:

<property name="app.nuget" value="..${path.separator}${folder.references}${path.separator}NuGet${path.separator}NuGet.exe" overwrite="false" />

uppercut.config setting

2. Include the NuGet folder in your lib directory from the UC distribution (or get the latest NuGet.exe and drop it in a NuGet folder under lib):

lib/NuGet

3. Add the nuget directory at your top level (next to the build.bat file) from the UC distribution:

nuget folder

New to Uppercut?

1. There is a nice write up on how to get UC set up on your project in less than 5 minutes (or you can try the gems approach)! It really shows how little is needed to get a fully conventional build with the ability to upgrade in seconds instead of hours for your builds.

Getting Some Nuget-ty Goodness To Your Builds

1. Head into the top level nuget folder. Rename the __NAME__.nuspec file to the name of your nugget (most likely your project name if there are no other packages named the same). Here we are working with SidePOP, so I named it sidepop.nuspec.

rename the __NAME__.nuspec   sidepop.nuspec

2. Let’s open that file and take a look.

<?xml version="1.0"?>
<package xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema">
  <metadata>
    <id>__REPLACE__</id>
    <version>DO_NOT_EDIT</version>
    <authors>__REPLACE__</authors>
    <owners>__REPLACE__</owners>
    <summary>__REPLACE__</summary>
    <description>__REPLACE__</description>
    <!--<projectUrl>__REPLACE__</projectUrl>
    <licenseUrl>__REPLACE__</licenseUrl>
    <requireLicenseAcceptance>false</requireLicenseAcceptance>
    <tags>space delimited</tags>
    <iconUrl>32x32.png</iconUrl>
    <dependencies>
      <dependency id="something" version="1.0.0.0" />
    </dependencies>-->
  </metadata>
</package>

NOTE: Notice the metadata attribute doesn’t have the xmlns in it (xmlns="http://schemas.microsoft.com/packaging/2010/07/nuspec.xsd"). This needs to be removed for xpath to be able to replace the version. If you are bringing an existing nuspec in, you will want to remove that.

3. Look how most things say __REPLACE__. The version attribute does not. Do not edit version (if you do, it will just be replaced during the build).

4. Let’s set up the nuspec for SidePOP. SidePOP has a dependency on log4net version 1.2.10.

<?xml version="1.0"?>
<package xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema">
  <metadata>
    <id>sidepop</id>
    <version>DO_NOT_EDIT</version>
    <authors>Rob Reynolds, Tim Hibbard</authors>
    <owners>Rob Reynolds</owners>
    <summary>SidePOP gives your app the ability to receive email</summary>
    <description>SidePOP allows your application the ability to receive email</description>
    <projectUrl>http://sidepop.googlecode.com</projectUrl>
    <licenseUrl>http://www.apache.org/licenses/LICENSE-2.0</licenseUrl>
    <requireLicenseAcceptance>false</requireLicenseAcceptance>
    <tags>email</tags>
    <!--<iconUrl>32x32.png</iconUrl>-->
    <dependencies>
      <dependency id="log4net" version="1.2.10" />
    </dependencies>
  </metadata>
</package>

5. We also have content transformation for the config file, so we’ll include that in the nuget folder.

adding a content folder

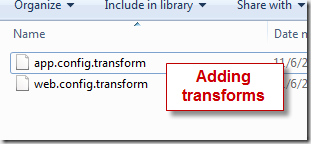

6. In that we will create our transforms for the web.config and app.config.

transform files

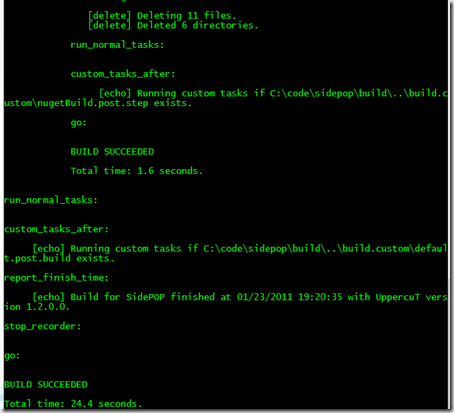

7. Now we go back up to our top level folder and run build.bat.

build it like the matrix

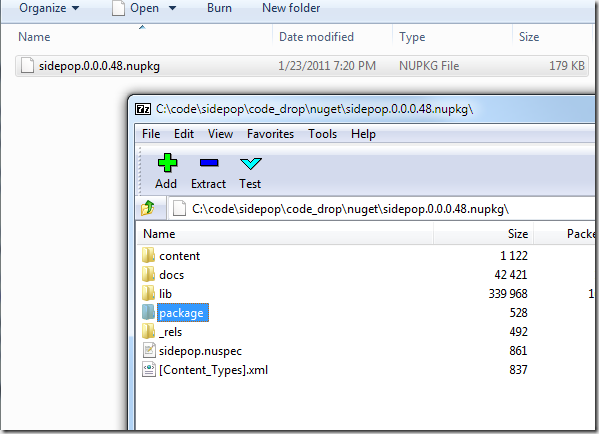

8. If we head down to our code_drop/nuget folder, you can see we have a nupkg with the right version on it!

7Zip - showing the package and contents

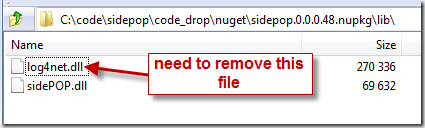

9. Now all we have to do is look to be sure we have everything we want and we can upload. In my case I need to exclude the log4net file I have, so I need to delete that one from the directory during the build process. How do I get in? UC Extension Points of course!

Got log4net in my package

10. If I drop into the build folder and open a command line I can type: customize nugetPrepare.step post

customize nugetPrepare.step post

11. This will create an extension point file for me in build.custom.

nugetPrepare.post.step

12. Open that file and let’s remove the log4net file from the nuget drop directory prior to the nuget build. This is how I set up that file:

<?xml version="1.0" encoding="utf-8"?>
<project name="CUSTOM POST NUGETPREPARE" default="go">
  <!-- Project UppercuT - http://projectuppercut.org -->
  <property name="build.config.settings" value="__NONE__" overwrite="false" />
  <include buildfile="${build.config.settings}" if="${file::exists(build.config.settings)}" />
  <property name="path.separator" value="${string::trim(path::combine(' ', ' '))}" />
  <property name="dirs.current" value="${directory::get-parent-directory(project::get-buildfile-path())}" />
  <property name="path.to.toplevel" value=".." />
  <property name="folder.code_drop" value="code_drop" overwrite="false" />
  <property name="dirs.drop" value="${dirs.current}${path.separator}${path.to.toplevel}${path.separator}${folder.code_drop}" overwrite="false" />
  <property name="dirs.drop" value="${path::get-full-path(dirs.drop)}" />
  <property name="folder.nuget" value="nuget" overwrite="false" />
  <property name="dirs.drop.nuget" value="${dirs.drop}${path.separator}${folder.nuget}" overwrite="false" />

  <target name="go">
    <echo message="Removing log4net from '${dirs.drop.nuget}\lib'" />
    <delete>
      <fileset basedir="${dirs.drop.nuget}\lib" >
        <include name="log4net.*" />
      </fileset>
    </delete>
  </target>

</project>

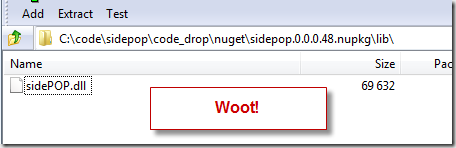

13. Now looky here, log4net is no longer in my package. Open-mouthed smile

sidepop.dll minus log4net.dll

14. Now I am ready to test my package before I push it out by putting it in a local feed and grabbing it.

Package Manager Console

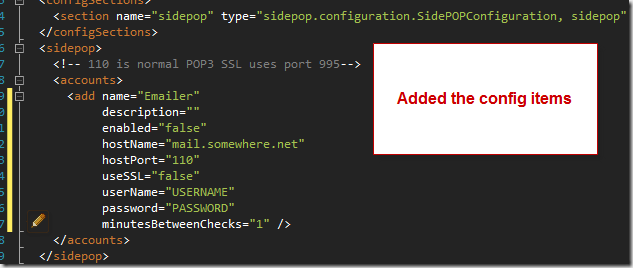

sidepop in the configuration file

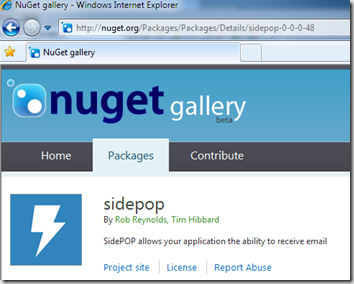

15. All good. Now I can upload and put my package on the official feed!

SidePOP on NuGet gallery!

NOTE: SidePOP is in Alpha. If you want to use it to check email, it works, but be prepared for possible errors.

Conclusion – UppercuT and NuGet – A Good Team!

You can see how fast we went from ZERO NuGet to up on the http://nuget.org site! In 4 steps I was already building a NuGet package, and in less than 15 steps it was production ready! What are you waiting for? Go UppercuT your code now!

If you have any UC related questions when getting it all NuGet-ty, feel free to contact the list: http://groups.google.com/group/chucknorrisframework

With this knowledge, you shall build.
