Taking your Northwind Database to SQL Azure and binding it to an ASP.NET Grid View – Part I

If you like to migrate your Web tier or the ASP.NET Application to Windows Azure, check my new posts Part I and Part II

SQL Azure is the latest buzz around Cloud Computing and the ability to take relational database to the cloud as is, is something most would welcome compared to the earlier model of ACE (Authority, Container, Entity) that was there when SQL Azure was SSDS.   Well, like others, I also got interested and wanted to explore the SQL Azure.  SQL Azure is currently in CTP and offers token based access.  I would briefly outline the steps here on getting the SQL Azure Token, although Jim O’Neil has a nice post on this

Visit SQL Azure Registration at Microsoft Connect

Sign in with your Live ID (Passport, Hotmail, MSN, Live)

Fill in the details and submit the form

You should receive the invitation code in an email from an alias “SQL Azure Talk” or something similar (note this may take from a day to a week until the CTP is available)

Visit https://sql.azure.com

Fill in the Invitation Code received in the email

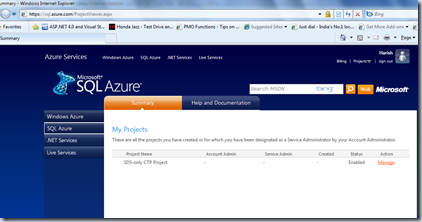

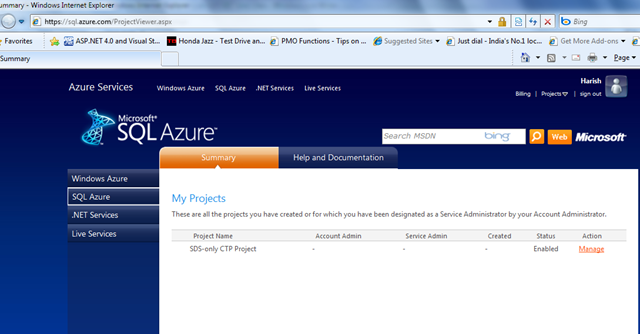

You will be directed a page similar to below


Click on the “Manage” link in the right. It will take you to a page as below:-

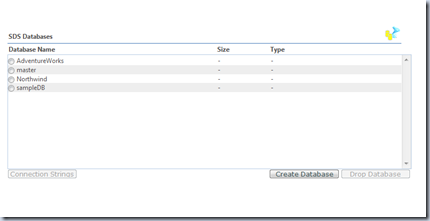

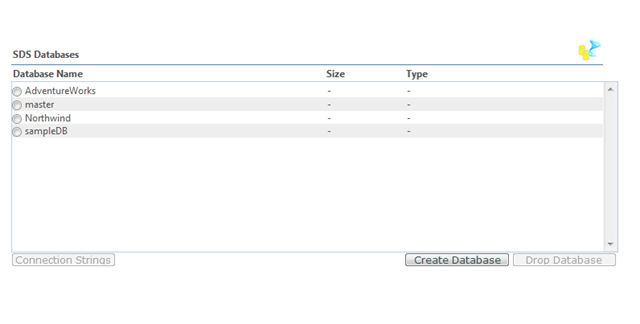

This page is where you can create / delete databases as well as get the connection string etc.,


In the top of this page you will also see “Connection Strings” , “Reset Password” icons and also the Server Name, User Name that you chose, and the location where the database is hosted.

You can click on “Create Database” to specify a new Database table name (that’s all you can do, you cannot create tables from here, just the database)

As you can see, I have created a few databases except master which is the default database.  You can chose an individual database and then click on the “Connection Strings” icon in the bottom (currently disabled) to get the specific connection string for the database you created.

Now, this is the first step towards getting access to SQL Azure Services.

Next, the big question you might have is how do I create tables, procedures etc.,  The MSDN Sample documentation provides you the instructions on creating a basic database with a single table.  However, you might want to create / import a relational database such as Northwind with more tables etc.,  The trick here is that not all data formats are supported, particularly the deprecated ones such as ntext, image etc., at least at the moment and you can’t just go ahead and run the DB Scripts against SQL Azure to create the database and tables.  Lets examine one by one on the steps to access SQL Azure Tables in SQL Server Management Studio, Getting a script that can be executed on SQL Azure, Uploading data to SQL Azure and finally binding it to GridView

Accessing SQL Azure Tables in SQL Server Management Studio

SQL Server Management Studio (SSMO) is probably the most favourite tool used for querying, running scripts etc.,  You can download SSMO for SQL Server 2008 or the free SQL Server Express edition from here

Once you installed, it would prompt you with a login dialog with server details etc., (if you have used it already, you would be familiar with it).  Now, the trick is, to be able to use SSMO with SQL Azure, you need to dismiss the initial login screen and click on “New Query” icon in the top left and specify the server name which is typically like <YOURSERVERNAME>.ctp.database.windows.net (you can find the server name in the screens explained above).  Then specify the username, password and click on “Options” to specify the database that you created above.  Click “Connect” and you should be able to connect to the SQL Azure Server database.  A more detailed step by step instruction is available at Ramaprasanna’s Blog

The above trick of dimissing the initial login screen and again bring it up to enter the azure database credentials is no longer required with SQL Server 2008 R2 November CTP

If you had created the sample database by following the MSDN Sample documentation you can specify that database while connecting (explained in the step above) and then query the tables (select * from T1) to get the results.

Migrating Northwind to the SQL Azure Server

Like mentioned earlier, currently, you cannot take the DB script of say Northwind and run it in the SSMO to be able to create the database in SQL Azure.  There are a few changes required and also few modifications in the script.  Now, doing it for a simple database is quite easy.  However, if you want to migrate a database such as Northwind or Adventure Works, its going to get very complicated and a probable nightmare for you.

Thankfully, there is a SQL Azure Migration Wizard (beta) being developed in CodePlex which is free, open source and under development.  You can view and download it from CodePlex  (Note that it is in Beta and has limited capability in terms of performance, features etc.,)

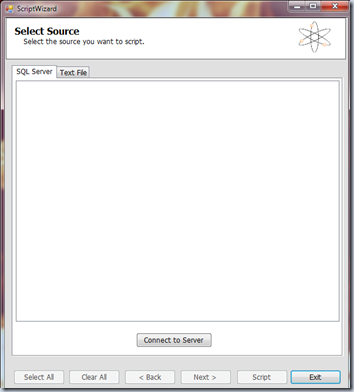

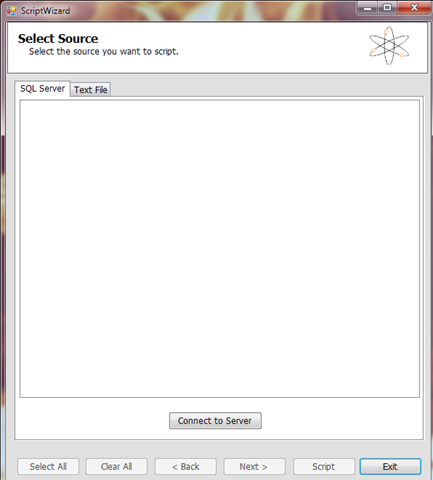

You can run the SQLAzureMW.exe that gets downloaded once you install the above.  It opens up a screen for connecting to your SQL Server Database

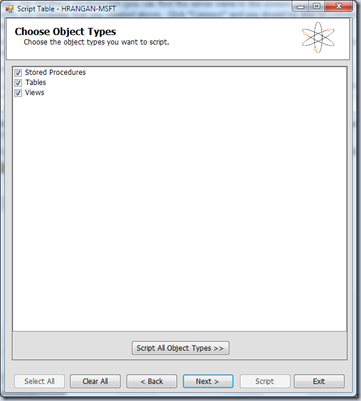

Click on “Connect to Server” and specify the servername, credentials etc., and it would list all the databases available in your SQL Server instance.  Click on “Northwind” (this post assumes you already installed the Northwind sample database for SQL Server. If not you can download it from here ) and chose the “Next” step.  It shows the “Script Options” screen where you can change settings.  Clicking on “Next” brings up the screen to chose Object types (SPs, Views, Tables).  I chose, “Script all Object types”

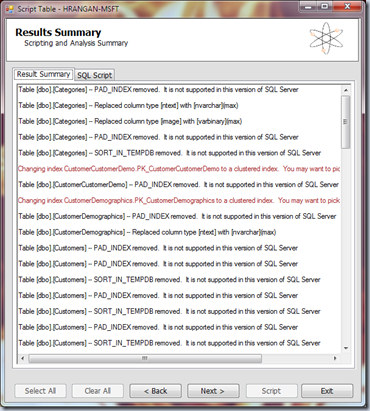

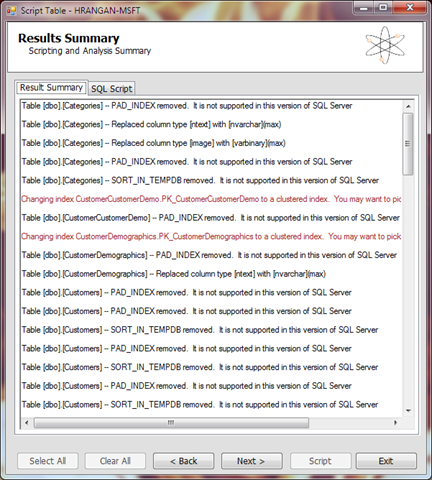

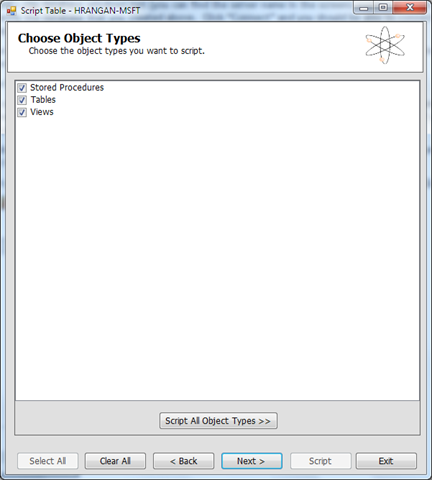

The next screen provides you to Script it to Window / SQL Azure or to a File.   Chose the “Window / SQL Azure” (default) and click “Next”.  The next screen provides an option to review the configurations made so far.   Click on “Script” and it would parse the scripts and provide the Results Summary.  What this tool essentially does is to make your regular DB Script compatible with a format that is supported in SQL Azure.   Once again since this is in Beta, it may not be near to 100% perfection in this process.

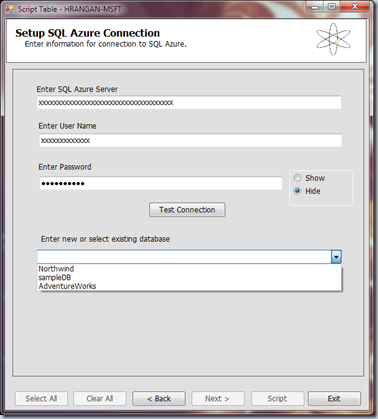

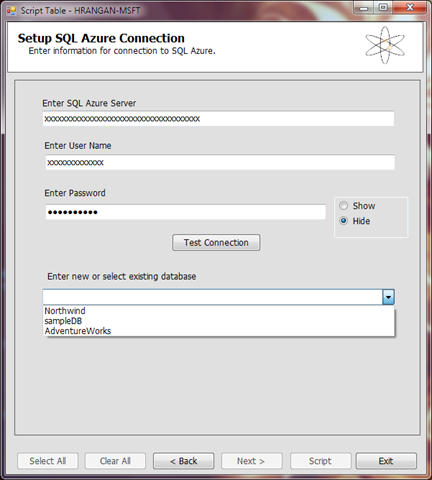

The next screen is where you specify your SQL Azure Server Details. Note that the default Server URL that comes is little outdated.  You can get the correct URL from the SQL Azure Portal page (explained in screen shot 2 above) by clicking on the “Connection Strings” icon in the top of the page.  It provides the Server URL as mentioned earlier <YOURSERVERNAME>.ctp.database.windows.net.  You just need to add tcp.  So the fully qualified URL that you need here would look like tcp:<YOURSERVERNAME>.ctp.database.windows.net.  Also, specify the username and password (the one you chose when creating the SQL Azure Database in the first step) and then click on “Test Connection” to check the details.  If you receive an error it might just be wrongly specified server name or missing parts of the URL.   Once you succeed, you can see that it also lists the existing databases (if you haven’t created anything, only “master” would be listed here) and provides the option to create a new database.  You can chose the “Northwind” if you already created it in the SQL Azure portal or type “Northwind” to create it newly.

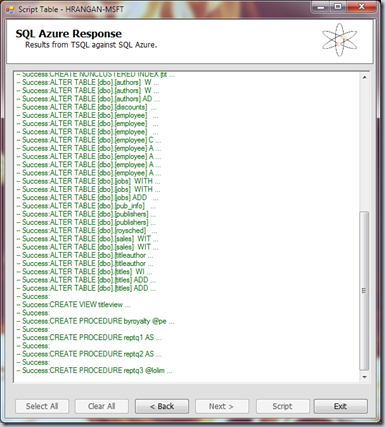

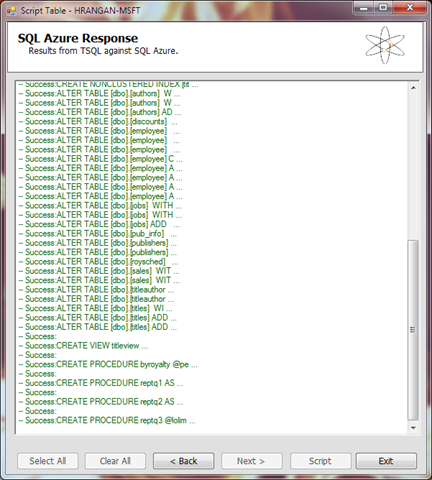

Next, you can click on “Script” and it does a migration of the scripts to SQL Azure Portal.  It lists down the results in the final screen.


Note that this has just migrated the Schema and not the actual Data.  But to take up an on-premise database, generate the scripts and deploy it on SQL Azure manually would be next to impossible, particularly if you have a large database with complex schema.  This tool would help to a great extent in automating the process.

UPDATE: The latest version of SQL Azure Migration Wizard migrates both Data and Schema.  You can download the same from http://sqlazuremw.codeplex.com/Release/ProjectReleases.aspx?ReleaseId=32334

Finally, we need to upload the Data.  Lets examine it in the next post.  Read Next Post

Cheers !!!

Print | posted on Tuesday, September 29, 2009 2:58 AM
