Mike Huguet I'm just talking out loud

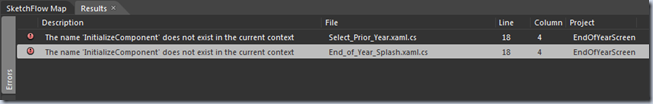

This is my first real go round with Expression Blend and SketchFlow and it is taking quite a while to get used to it.  After several iterations of names and screen dragging, dropping in the SketchFlow Map, and adding a few elements to some screens, I decided to try and run my recently created Silverlight SketchFlow project.  To my surprise I received error message and a broken build.  How could I get a build break if I didn’t even write any code?  Man, maybe I should stick to Visual Studio.  My co-workers would love this!


I found a forum entry that sent me in the right direction.  It seems that after renaming a few times the designer gets confused and does not rename all of the components as it should.

Here is my XAML:

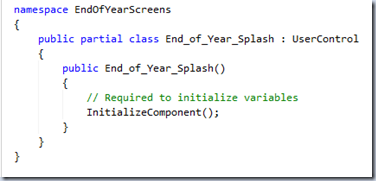

and my code behind:


Notice that the x:Class entry and the code behind don’t match.  To resolve this all that I did was modify the x:Class entry to EndOfYearScreens.End_of_Year_Splash and it worked.  Let’s hope that this never happens to a Designer as they may have to get into the code behind.  AHH!  Hopefully, I can get this prototype out soon without anymore issues like this.

Technorati Tags: ,,
Posted on Sunday, April 3, 2011 9:43 PM Blend/SketchFlow | Back to top

Related Posts on Geeks With Blogs Matching Categories

Comments on this post: SketchFlow Build Error - “The Name ‘InitializeComponent’ does not exist in the current context”

# code is match but not solved
Requesting Gravatar...
Visual Studio can build and run the project
but blend cant build project with "initializecomponent does not exist in the current context" error...
Left by vain43 on Sep 26, 2013 1:05 AM
