As discussed in the introduction article this walkthrough will explain how you can implement WCF security with the Windows Azure Service Bus to ensure that you can protect your endpoint in the cloud with a shared secret but also combine this with certificates so that you can identify the sender of the message.



Prerequisites

As in the previous article before going into the walk through I want to explain a few assumptions about the scenario we are implementing but to keep the article shorter I am not going to walk through all of the steps in how to setup some of this.

In the solution we have a simple console application which will represent the client application. There is also the services WCF application which contains the WCF service we will expose via the Windows Azure Service Bus.

The WCF Service application in this example was hosted in IIS 7 on Windows 2008 R2 with AppFabric Server installed and configured to auto-start the WCF listening services. I am not going to go through significant detail around the IIS setup because it should not matter in relation to this article however if you want to understand more about how to configure WCF and IIS for such a scenario please refer to the following paper which goes into a lot of detail about how to configure this. The link is: http://tinyurl.com/8s5nwrz



Setting up the Certificates

To keep the post and sample simple I am going to use the local computer store for all certificates but this bit is really just the same as setting up certificates for an example where you are using WCF without using Windows Azure Service Bus. In the sample I have included two batch files which you can use to create the sample certificates or remove them.

Basically you will end up with:

  • A certificate called PocServerCert in the personal store for the local computer which will be used by the WCF Service component
  • A certificate called PocClientCert in the personal store for the local computer which will be used by the client application
  • A root certificate in the Root store called PocRootCA with its associated revocation list which is the root from which the client and server certificates were created



For the sample Im just using development certificates like you would normally, and you can see exactly how these are configured and placed in the stores from the batch files in the solution using makecert and certmgr.



The Service Component

To begin with let's look at the service component and how it can be configured to listen to the service bus using a shared secret but to also accept a username token from the client. In the sample the service component is called Acme.Azure.ServiceBus.Poc.Cert.Services. It has a single service which is the Visual Studio template for a WCF service when you add a new WCF Service Application so we have a service called Service1 with its Echo method.

Nothing special so far!....

The next step is to look at the web.config file to see how we have configured the WCF service.

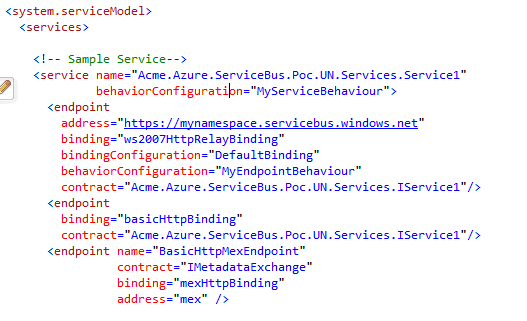

In the services section of the WCF configuration you can see I have created my service and I have created a local endpoint which I simply used to do a little bit of diagnostics and to check it was working, but more importantly there is the Windows Azure endpoint which is using the ws2007HttpRelayBinding (note that this should also work just the same if your using netTcpRelayBinding).

The key points to note on the above picture are the service behavior called MyServiceBehaviour and the service bus endpoints behavior called MyEndpointBehaviour. We will go into these in more detail later.



The Relay Binding

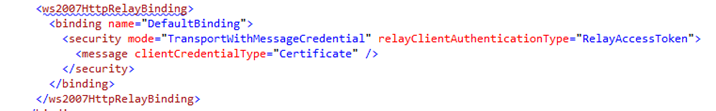

The relay binding for the service has been configured to use the TransportWithMessageCredential security mode. This is the important bit where the transport security really relates to the interaction between the service and listening to the Azure Service Bus and the message credential is where we will use our certificate like we have specified in the message/clientCrentialType attribute.

Note also that we have left the relayClientAuthenticationType set to RelayAccessToken. This means that authentication will be made against ACS for accessing the service bus and messages will not be accepted from any sender who has not been authenticated by ACS.



The Endpoint Behaviour

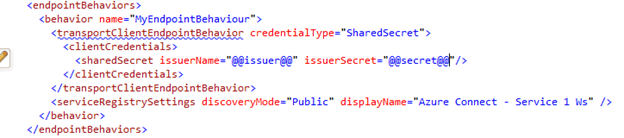

In the below picture you can see the endpoint behavior which is configured to use the shared secret client credential for accessing the service bus and also for diagnostic purposes I have included the service registry element.





Hopefully if you are familiar with using Windows Azure Service Bus relay feature the above is very familiar to you and this is a very common setup for this section. There is nothing specific to the username token implementation here.

The Service Behaviour

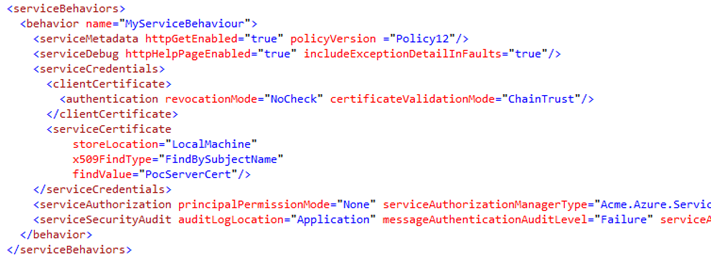

Now we come to the bit with most of the certificate stuff in it. When you configure the service behavior I have included the serviceCredentials element and then setup to use the clientCertificate check and also specifying the serviceCertificate with information on how to find the servers certificate in the store.





I have also added a serviceAuthorization section where I will implement my own authorization component to perform additional security checks after the service has validated that the message was signed with a good certificate.

I also have the same serviceSecurityAudit configuration to log access to my service.

My Authorization Manager

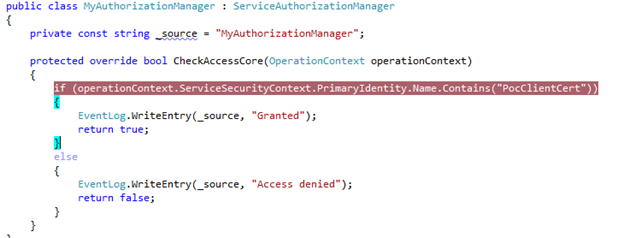

The below picture shows you implementation of my authorization manager. WCF will eventually hand off the message to my authorization component before it calls the service code. This is where I can perform some logic to check if the identity is allowed to access resources. In this case I am simple rejecting messages from anyone except the PocClientCertificate.





The Client

Now let's take a look at the client side of this solution and how we can configure the client to authenticate against ACS but also send a certificate over to the service component so it can implement additional security checks on-premise.

I have a console application and in the program class I want to use the proxy generated with Add Service Reference to send a message via the Azure Service Bus. You can see in my WCF client configuration below I have setup my details for the azure service bus url and am using the ws2007HttpRelayBinding.

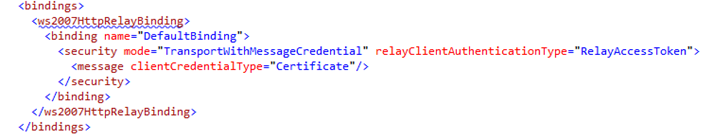

Next is my configuration for the relay binding. You can see below I have configured security to use TransportWithMessageCredential so we will flow the token from a certificate with the message and also the RelayAccessToken relayClientAuthenticationType which means the component will validate against ACS before being allowed to access the relay endpoint to send a message.

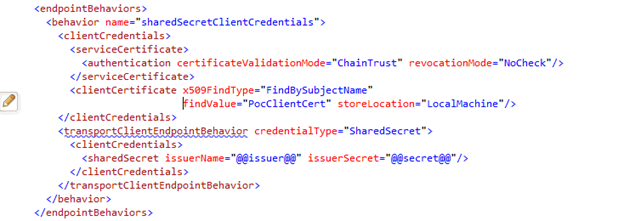

After the binding we need to configure the endpoint behavior like in the below picture. This contains the normal transportClientEndpointBehaviour to setup the ACS shared secret configuration but we have also configured the clientCertificate to look for the PocClientCert.

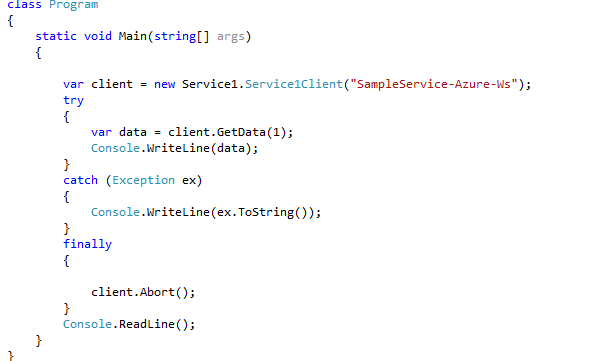

Finally below we have the code of the client in the console application which will call the service bus. You can see that we have created our proxy and then made a normal call to a WCF in exactly the normal way but the configuration will jump in and ensure that a token is passed representing the client certificate.





Conclusion

As you can see from the above walkthrough it is not too difficult to configure a service to use both a shared secret and certificate based token at the same time. This gives you the power and protection offered by the access control service in the cloud but also the ability to flow additional tokens to the on-premise component for additional security features to be implemented.

Sample

The sample used in this post is available at the following location:

https://s3.amazonaws.com/CSCBlogSamples/Acme.Azure.ServiceBus.Poc.Cert.zip
