This example shows on how to add rows of data in the GridView control. In this example, I created a simple database table called “Table1” for storing the data.
The Table has the following columns:
Id – PK
Employees
Position
Team
Note that I added some dummy data in table that I have created so that we can display something in the GridView when the page is loaded for the first time.
To get started, let’s grab a GridView Control from the Visual Studio ToolBox and place it in the webform. Then set up the GridView columns for displaying the data. The Markup should look something like this:
|
<asp:GridView ID="GridViewEmployee" runat="server" AutoGenerateColumns="false" ShowFooter="true">
<Columns>
<asp:TemplateField HeaderText="Employee Name">
<ItemTemplate>
<asp:Label ID="Label1" runat="server" Text='<%# Bind("Employees") %>'/>
</ItemTemplate>
<FooterTemplate>
<asp:TextBox ID="TextBoxEmployee" runat="server"/>
</FooterTemplate>
</asp:TemplateField >
<asp:TemplateField HeaderText="Position">
<ItemTemplate>
<asp:Label ID="Label2" runat="server" Text='<%# Bind("Position") %>'/>
</ItemTemplate>
<FooterTemplate>
<asp:TextBox ID="TextBoxPosition" runat="server"/>
</FooterTemplate>
</asp:TemplateField>
<asp:TemplateField HeaderText="Team Name">
<ItemTemplate>
<asp:Label ID="Label3" runat="server" Text='<%# Bind("Team") %>'/>
</ItemTemplate>
<FooterTemplate>
<asp:TextBox ID="TextBoxTeam" runat="server"/>
</FooterTemplate>
</asp:TemplateField>
<asp:TemplateField HeaderText="Employee ID">
<ItemTemplate>
<asp:Label ID="Label3" runat="server" Text='<%# Bind("Id") %>'/>
</ItemTemplate>
<FooterTemplate>
<asp:Button ID="Button1" runat="server" Text="Add New" OnClick="Button1_Click" />
</FooterTemplate>
</asp:TemplateField>
</Columns>
</asp:GridView>
|
As you can see, I used TemplateField Columns and added some Labels in it for displaying the data from the database. I set up TemplateField columns in the Grid so that we can add input fields (TextBox) under the footer of the template for adding new records to database. Note that since we need to add some controls under the footer of the templatefields then be sure that you have set ShowFooter to TRUE in your GridView.
Now let’s switch to source code view (Code Behind) and create a method for binding our GridView.
Here are the code blocks below:
|
private string GetConnectionString()
{
//Where MyConsString is the connetion string that was set up in the web config file
return System.Configuration.ConfigurationManager.ConnectionStrings["MyConsString"].ConnectionString;
}
private void BindGridView()
{
DataTable dt = new DataTable();
SqlConnection connection = new SqlConnection(GetConnectionString());
try
{
connection.Open();
string sqlStatement = "SELECT * FROM Table1";
SqlCommand sqlCmd = new SqlCommand(sqlStatement, connection);
SqlDataAdapter sqlDa = new SqlDataAdapter(sqlCmd);
sqlDa.Fill(dt);
if (dt.Rows.Count > 0)
{
GridViewEmployee.DataSource = dt;
GridViewEmployee.DataBind();
}
}
catch (System.Data.SqlClient.SqlException ex)
{
string msg = "Fetch Error:";
msg += ex.Message;
throw new Exception(msg);
}
finally
{
connection.Close();
}
}
protected void Page_Load(object sender, EventArgs e)
{
if (!Page.IsPostBack)
{
BindGridView();
}
}
|
For more detail information about binding the GridView Control with data then I would suggest you to refer here.

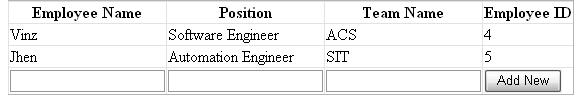

Running the code above will give us this page output below:
As you noticed, there are three TextBoxes below each columns in the GridView and a Button for adding a new row in the Grid.
Now let’s create the method for adding new records to the database. Here’s the code block below:
|
private void AddNewRecord(string employee, string position, string team)
{
SqlConnection connection = new SqlConnection(GetConnectionString());
string sqlStatement = "INSERT INTO Table1" +
"(Employees,Position,Team)" +
"VALUES (@Employees,@Position,@Team)";
try
{
connection.Open();
SqlCommand cmd = new SqlCommand(sqlStatement, connection);
cmd.Parameters.AddWithValue("@Employees", employee);
cmd.Parameters.AddWithValue("@Position", position);
cmd.Parameters.AddWithValue("@Team", team);
cmd.CommandType = CommandType.Text;
cmd.ExecuteNonQuery();
}
catch (System.Data.SqlClient.SqlException ex)
{
string msg = "Insert/Update Error:";
msg += ex.Message;
throw new Exception(msg);
}
finally
{
connection.Close();
}
}
|
Now let’s call that method when clicking on the Button “Add New”. Here’s the code block below:
|
protected void Button1_Click(object sender, EventArgs e)
{
//Extract the TextBoxes that is located under the footer template
TextBox tbEmployee = (TextBox)GridViewEmployee.FooterRow.Cells[0].FindControl("TextBoxEmployee");
TextBox tbPosition = (TextBox)GridViewEmployee.FooterRow.Cells[1].FindControl("TextBoxPosition");
TextBox tbTeam = (TextBox)GridViewEmployee.FooterRow.Cells[2].FindControl("TextBoxTeam");
//call the method for adding new records to database and pass the necessary parameters
AddNewRecord(tbEmployee.Text, tbPosition.Text, tbTeam.Text);
//Re-Bind the GridView to reflect the changes made
BindGridView();
}
|
Now, compile your application and run it. Then try input something in the TextBox and hit the Button "Add New" to add a new data to the Database. The page output should look something like this:
That’s it! Hope you will find this example useful!
