Calling An ASMX Web Service From Different Languages

[Switch to "Elastic Layout" to see this properly.]

I get a lot of mileage using Web Services inside an intranet.  I sometimes need to cross operating systems and languages to take advantage of pre-written services.  One issue I've run across is the need to find the correct syntax in different languages that will generate a correct result.  Some implementations are really easy and others require some delicate, precision work in order for them to respond correctly.  Once written, however, they are consistent in their performance.

In this example, I've taken a minor Web Service (function: GetWeather(String City)) that returns random weather information when given a city.  This is just for fun and to test parameters on Web Service calls.  The service is at:

http://www.deeptraining.com/webservices/weather.asmx

This page has no HTML test page built for it, so your actual call will need to be the entity performing the test.

When a successful call is given, the responses are in the range of:  Rain, Sunny, Partly Cloudy, Cloudy, etc.

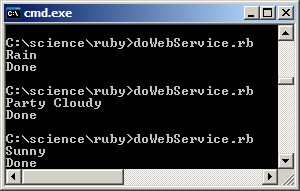

Here is a sample result of three runs from the Ruby version:

Graphic of Ruby Result

If anyone wants to create the Scala and/or Python versions (before I do), I will gladly post them here.

FYI: Perl and Java were the most difficult  / cumbersome and C++ was the easiest.


Here is the PHP version:

<?php

function doWebService()
{
       ########################################################################
       # Do some SOAP / Call a Web Service
       $client = new SoapClient("http://www.deeptraining.com/webservices/weather.asmx?WSDL");
       $strWeather = $client->GetWeather(array('City' => 'Murfreesboro'))->GetWeatherResult;
       echo $strWeather . "\nDone";
}

doWebService();
?>


Here is the Ruby version:

require 'soap/wsdlDriver' # Include the soap driver
require 'SuppressWarning' # Suppress the soap unused param warning

################################################################################
# Call to a web service on the Internet (passing a parameter)
def   doWebService()
   # Instantiate a soap driver for the given service and NameSpace
   # Call the return from the driver creation, pass it a parameter and
   # Append "Done" to the end of that
   # of course, this is now unReadable...
   puts (
      soap = suppress_warning {
         SOAP::WSDLDriverFactory.new(
            'http://www.deeptraining.com/webservices/weather.asmx?WSDL'
            ).create_rpc_driver
         }
      ).getWeather({'City' => 'Murfreesboro'}).getWeatherResult+"\nDone"
end

doWebService()

----------------------------[SuppressWarning.rb]----------------------------

def suppress_warning
    back = $VERBOSE
    $VERBOSE = nil
    begin
      yield
    ensure
      $VERBOSE = back
    end
end




Here is the Perl version:

## WORKS as of 03/06/2010
use strict;
use SOAP::Lite;

###############################################################################
sub doWebService()
{
   my $FUNCTION      = 'GetWeather';
   my $strParamName  = 'City';
   my $strParamValue = 'Murfreesboro';
   my $strNamespace  = 'http://litwinconsulting.com/webservices';

   #############################################################################
   # Set the value of ACTION to the value you need passed in the
   # SOAPAction header
   # Init the WebService
   my $soap = SOAP::Lite
      ->proxy('http://www.deeptraining.com/webservices/weather.asmx')
      ->on_action(sub { return "$strNamespace/$FUNCTION"; } )
      ->ns("$strNamespace/");

   #####################
   # Call the WebService
   my $resp = $soap->call(
      SOAP::Data->name("$FUNCTION")->attr({xmlns => "$strNamespace/"}),
      SOAP::Data->name($strParamName => $strParamValue)
      );

   #########################################################
   # Since the result comes back as a string, just print it.
   return $resp->result();
}

print &doWebService();
print "\nDone\n";


Here is the Java version:

import java.util.*;
import java.io.*;
import java.net.URLConnection;
import java.net.MalformedURLException;

import org.apache.axis.client.Call;
import org.apache.axis.client.Service;
import org.apache.axis.encoding.XMLType;
import javax.xml.namespace.QName;
import javax.xml.rpc.NamespaceConstants;
import javax.xml.rpc.ParameterMode;
import java.net.URL;

public class doWebService
{
      public      static void doWebServiceCall()
      {
            try
            {
                  ////////////////////////////////////////////////////////////////////
                  // Responds the same with or without the ?WSDL
                  String      strEndPoint       = "http://www.deeptraining.com/webservices/weather.asmx";
                  String      strSoapAction     = "http://litwinconsulting.com/webservices/GetWeather";
                  String      strSchemaURL      = "http://litwinconsulting.com/webservices/";
                  String      strParamName1     = "City";
                  String      strParameterVal1= "Murfreesboro";
                  String      strFunctionName   = "GetWeather";

                  //Call      call   = (Call) new Service().createCall();//Works
                  Call  call   = new Call(strEndPoint);//Works same

                  ////////////////////////////////////////////////////////////////////
                  // first parameter in QName seemingly takes ANYTHING
                  call.setOperationName(new QName(strSchemaURL, strFunctionName));

                  ////////////////////////////////////////////////////////////////////
                  // Set the name of the parameter and the return type
                  call.setReturnType(XMLType.XSD_STRING);
                  call.addParameter(new QName(strSchemaURL,strParamName1), XMLType.XSD_STRING, ParameterMode.IN);
                  //
                  ////////////////////////////////////////////////////////////////////
                  // Catch the result and print it
                  // Parameter count is now ONE (1).
                  call.setSOAPActionURI(strSoapAction);//Yes Necessary
                  String      strResult = (String) call.invoke(new Object[] {strParameterVal1});
                  System.out.println("Result='" + strResult + "'");
            }
            catch (Exception e)
            {
                  e.printStackTrace();
                  System.err.println(e.toString());
            }
      }

      public static     void main(String[] args)
      {
            ////////////////////////////////////////////////////////////////////////
            //    6 Call a Web service (with parameters)
            doWebServiceCall();
      }
}


Here is the C++ version (once the WS is added to the project):

// doWebService_CPP.h
#pragma once
using
namespace System;
using namespace WS_WEATHER;

namespace doWebService_CPP {

       public ref class CDoWebService_CPP
       {
       public:
              static void DoWebService(void)
              {
                     Weather^ svcWeather = gcnew Weather();
                     Console::WriteLine(svcWeather->GetWeather("Murfreesboro")  + "\nDone");
              }
       };
}


Here is the VB version (once the WS is added to the project):

Public Class CDoWebService_VB
   Public Shared Sub DoWebService()
      Dim svcWeather As New WS_WEATHER.Weather()
      Console.WriteLine(svcWeather.GetWeather("Murfreesboro") & Chr(10) & "Done")
   End Sub
End
Class


Here is the C# version (once the WS is added to the project):

using System;
using doWebService_CS.WS_WEATHER;

namespace doWebService_CS
{
   public class CDoWebService_CS
   {
      public static void DoWebService()
      {
         Weather svcWeather = new Weather();
         Console.WriteLine(svcWeather.GetWeather("Murfreesboro") + "\nDone");
      }
   }
}




Here is the PowerShell version (borrowing from the C# version):

################################################################################
# Instead of attempting to dynamically reference a WebService, I leveraged the
# existing connection through a DLL created in C# in an earlier example.
# This example shows the loading of the DLL
# how to call a static method with PowerShell

[void][Reflection.Assembly]::LoadFile(
       "c:\science\managed\doWebService_CS\bin\Debug\doWebService_CS.dll")

[doWebService_CS.CDoWebService_CS]::DoWebService()

## For a more thorough look at PowerShell and WebServices, check: http://poshcode.org/538



posted @ Sunday, March 7, 2010 10:07 PM
Print

Comments on this entry:

# re: Calling An ASMX Web Service From Different Languages

Left by Michael Brown at 3/24/2010 1:59 PM
Gravatar
You do realize that Java has a communications stack called Metro that works like WCF and makes calling webservices dead easy? It even generates proxies for web services for you from WSDL. In fact most languages have some kind of library to abstract the process of calling web services.

This was a key element of web services success the metadata provided by WSDL makes it easier to create clients for a given web service across multiple platforms/languages/frameworks. I see that you discovered the associated frameworks for PERL, PHP, Ruby, et al. Java has one of the most mature communications stacks...almost on par with WCF...almost ;)

# re: Calling An ASMX Web Service From Different Languages

Left by Tom at 3/25/2010 12:03 AM
Gravatar
Mike, that's great! I look forward to experimenting with it. Thanks for the tip.

# re: Calling An ASMX Web Service From Different Languages

Left by Rich Duzenbury at 5/18/2010 11:44 AM
Gravatar
Got here from a google search. I'm trying to find where you might have gottent the SuppressWarning module from the Ruby version:

require 'SuppressWarning'

# re: Calling An ASMX Web Service From Different Languages

Left by Tom at 5/18/2010 12:58 PM
Gravatar
Rich, I just added the SuppressWarning to the original post. Thanks!

# re: Calling An ASMX Web Service From Different Languages

Left by Duygu at 9/11/2010 3:18 PM
Gravatar
great source,it helps me too much! thank you

# re: Calling An ASMX Web Service From Different Languages

Left by sue at 11/21/2010 11:44 AM
Gravatar
Hi,
I'm calling .Net webserive from java servlet using axis, i get the following error when call.invoke() is reached:

AxisFault
faultCode: {http://schemas.xmlsoap.org/soap/envelope/}Server
faultSubcode:
faultString: Server was unable to process request. ---&gt; Object reference not set to an instance of an object.
faultActor:
faultNode:
faultDetail:
{http://xml.apache.org/axis/}stackTrace:Server was unable to process request. ---&gt; Object reference not set to an instance of an object.
at org.apache.axis.message.SOAPFaultBuilder.createFault(SOAPFaultBuilder.java:222)

Do I need a server side code deployed in tomcat? Any help is appreciated.

# re: Calling An ASMX Web Service From Different Languages

Left by game at 2/10/2011 3:26 AM
Gravatar
Java is the most difficult other than
Really great thanks

# re: Calling An ASMX Web Service From Different Languages

Left by Prsad Korhale at 7/5/2012 3:55 PM
Gravatar
Thank you so much Mike. All language calls in 1 blog.

# re: Calling An ASMX Web Service From Different Languages

Left by Abel Pacheco at 5/28/2014 9:51 AM
Gravatar
¡Es genial!, muchas gracias. Usé la versión de Ruby, pero habría que agregar al post que para usarla se debe instalar una gema.
$ gem install soap4r-ruby19
Probado con Ruby 2.0.0 ;)

# re: Calling An ASMX Web Service From Different Languages

Left by Malik Kashif Naseer at 11/26/2014 3:35 PM
Gravatar
Thanks it is realy useful

# re: Calling An ASMX Web Service From Different Languages

Left by Kishan at 12/16/2014 3:57 AM
Gravatar
I have a query, I have added the wsdl as reference and can access the types and methods in it. The problem I am facing is at runtime it should connect to the endpoint pass the request string and obtain the response via the same endpoint. Need some help on how to achieve this programmatically.

Thanks in advance!
