How To Change Attachment Size in WorkItems in TFS 2010

Add Comment | Mar 15, 2012

Recently, I came across an issue where I had to change the size limit for WorkItem Attachments in TFS 2010. I searched all around the internet only to find very little information around it which wasn’t clear honestly.

So after breaking my head for sometime, I was successful in doing it. Here are my conclusions and the procedure to do it.

1. You DON’T 'have to' programmatically change it. You can do it directly from IIS webservices.

2. You CAN change it programmatically too, by making an entry into TFS Registry using a small piece of code.

Let me show you how it is done from IIS. This is to change the size of attachment to your required value for workItems in TFS 2010 for each collection individually.

  1. You must be a TFS Admin to do this ( Login with setup account )
  2. Browse to /WorkItemTracking/v1.0/ConfigurationSettingsService.asmx">/WorkItemTracking/v1.0/ConfigurationSettingsService.asmx">/WorkItemTracking/v1.0/ConfigurationSettingsService.asmx">http://localhost:8080/tfs/<YOUR-COLLECTION-NAME>/WorkItemTracking/v1.0/ConfigurationSettingsService.asmx

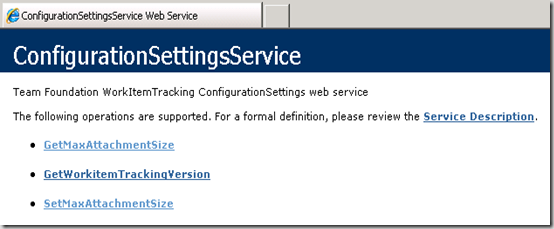

  3. You’ll see 3 asmx services – GetMaxAttachmentSize, GetWorkItemTrackingVersion and SetMaxAttachmentSize.


4. To know what is the current value of the maximum attachment size for a collection, click on the first service and you’ll the current existing value for this particular collection when you click on ‘invoke’ button. ( value is in bytes )

5. Now click on the ‘SetMaxAttachmentSize’ webservice and fill in the value of your choice.

6. Reset IIS ( not required honestly, but I did it, just to be sure )

7. Now try attaching a file greater than the size you’ve set. It’ll fail successfully Smile

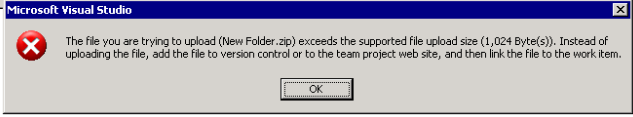

Below is the error which you’d see in such scenarios.


Let me know if you see any issues & I’ll be happy to help..!

Team Explorer Everywhere 2010 now Free..!

Add Comment | Mar 15, 2012

Yes, now more ways to get connected to TFS 2010. Up until now, if you have to connect to TFS 2010 from other platforms - be it Linux, Mac, Solaris etc., you had to purchase a CAL (Client Access License) or a 90-day free trial of the Team Explorer Everywhere 2010. You don't have to do that anymore. Microsoft has made it free and released an update with Team Explorer Everywhere with SP1. Here's the download link -

Have fun coding..!

TFS in the Cloud

Add Comment | Mar 07, 2012
If you are interested in creating a new Team Project and playing around with TFS 2011, you can try

You’ll have to register and request for an invitation code. Last I read on Brian's blog there was a free invitation code , but I’m assuming its exhausted already. The invitation code was: TfsDecUpdate. I don’t think it works anymore. So you can register & request for one.

VS 2012 Consumer Preview now available !

Add Comment | Mar 07, 2012

As announced earlier, Microsoft has released the Visual Studio 2012 Consumer Preview.
This is the VS Ultimate SKU Beta available for download.
You can get it from the link below.

Test Post with Windows Live Writer

Add Comment | Mar 07, 2012


Start believing in ‘Karma’ & 'Coffee' - You'll need both when you start working on TFS.
